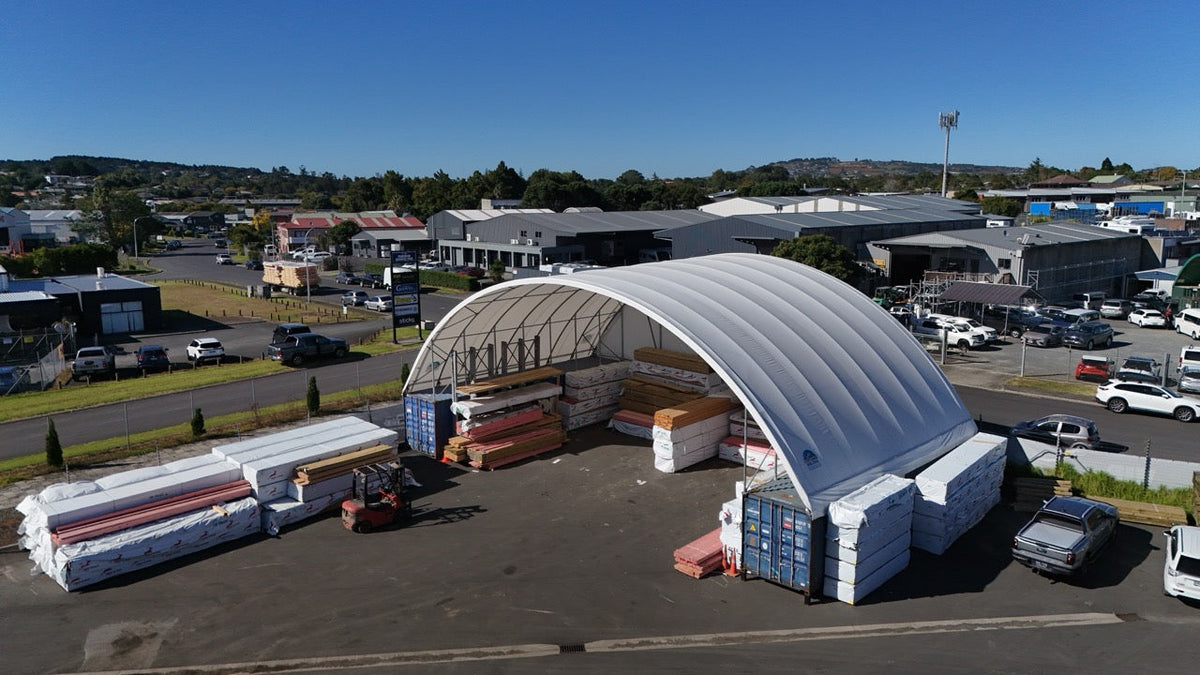

Lil' Bertha container shelter

Large-span container shelter

Lil' Bertha

14m clear span, with a huge volume.

Get My Quote
Talk to our team 1800 683 838
14m Clear span
19m Overall width
10 Year Warranty
3,500+ Shelters supplied

Available lengths

Covered area
Select a length to preview the shelter configuration.

Technical overview

Lil' Bertha specifications

Fourteen metres of clear span with the working height to match. Built for machinery, bulk storage and sites that need serious covered space without a conventional building.

Overall height is measured from ground level and assumes standard containers unless noted. Confirm site levels and access before finalising your layout.

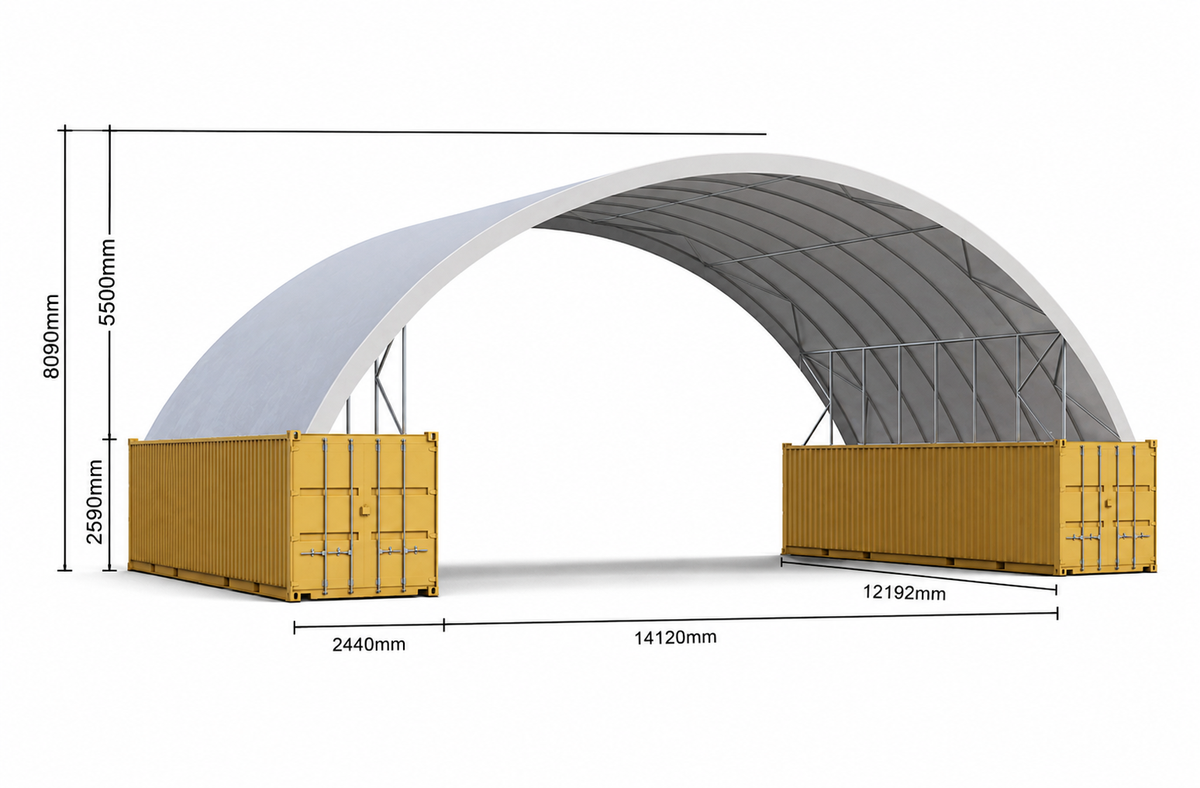

Lil' Bertha container shelter render

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 14m (14,120mm) inside to inside
Overall footprint 19m including the containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom — we have built beyond 100m
Overall height 8.09m on standard containers; 8.39m on Hi-Cube
Rise 5,500mm above container height to apex
Frame Hot-dip galvanised structural steel
Cover Sheltex 650gsm PVC membrane with sealed outer finish
Mounting Mounts to the outside of shipping containers
Wind regions Engineered to AS/NZS 1170.2. Wind rating is confirmed for your site and wind region through site-specific structural certification
Engineering Engineered to AS/NZS 1170, with site-specific structural certification by an Australian engineer available
Warranty 10-year warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Container options

Single or double stacked.

Lil' Bertha sits on shipping containers, with the containers under the shelter. Choose single or double-stacked depending on the clearance you need underneath.

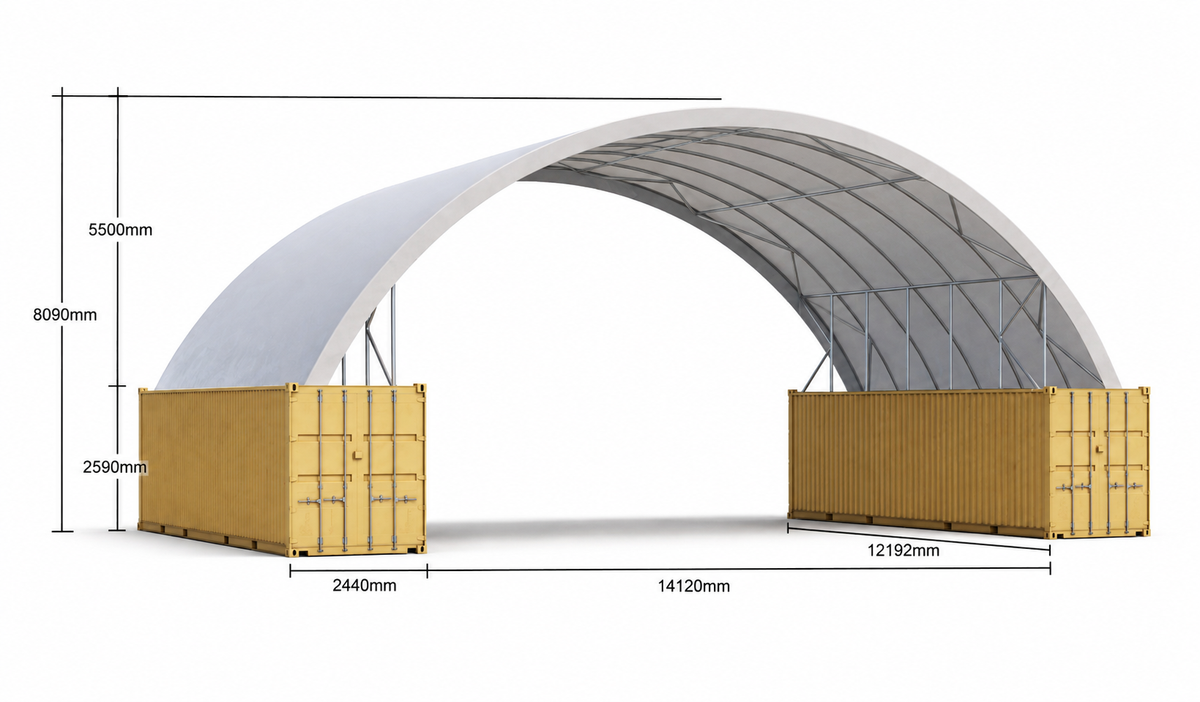

Lil' Bertha container shelter, single stacked containers Standard

Single Stack

The standard setup. Containers at one high, with the shelter spanning over the top of them.

  • Our standard configuration
  • High volume
  • Containers under cover

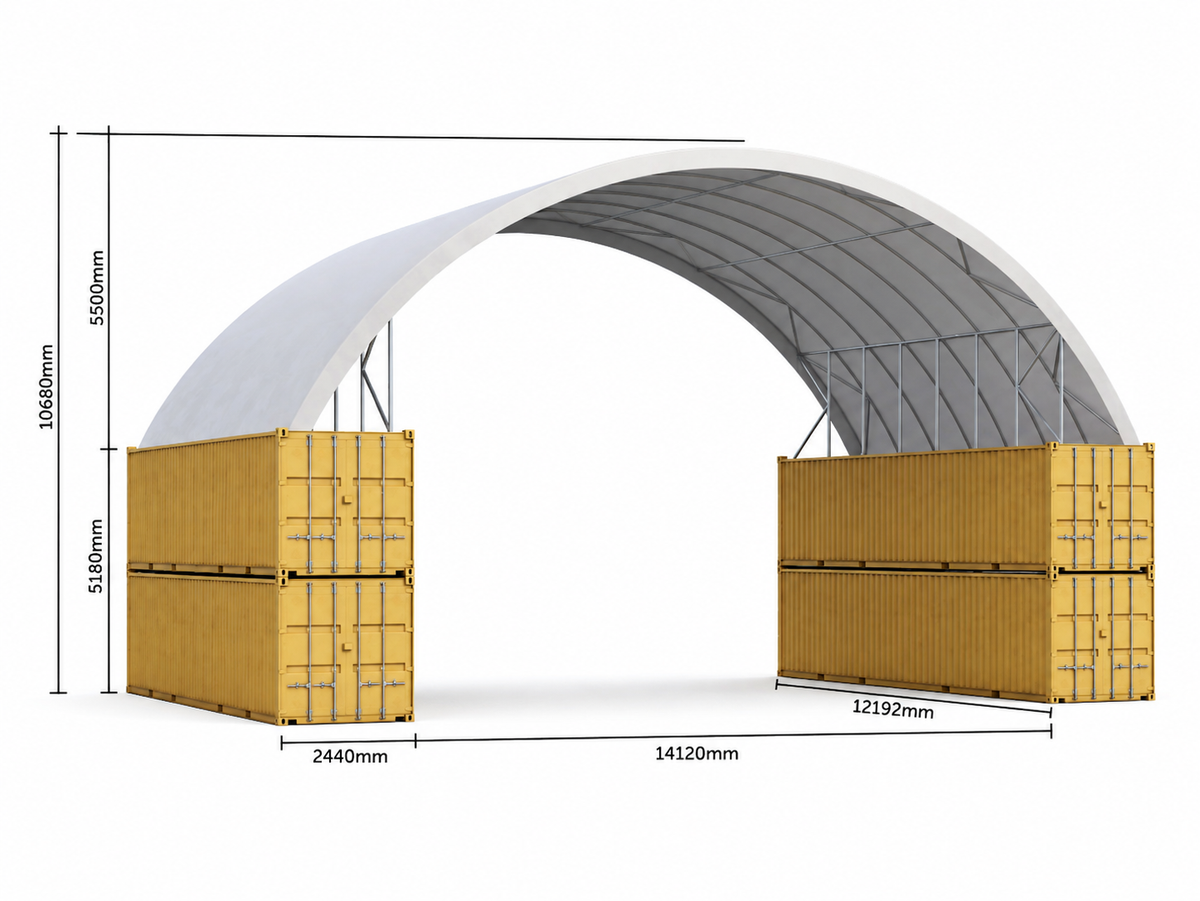

Lil' Bertha container shelter, double stacked containers

Double Stack

Containers stacked two high for extra clearance underneath — for tall machinery, tipping trucks or stacked product.

  • Massive volume
  • Two containers high
  • Containers under cover

Built in the real world

Big shelter. Honest numbers.

Lil' Bertha covers the ground of a small building without the piles, footings or build programme of one — and we tell you both the clear span and the overall width up front.

Large volume

Connect multiple units together for any length.

Versatile

Large-span covered storage for many applications.

Rapid dry space

Generally installed in a matter of days.

Double stacked

Stack the containers two high where you need serious headroom.

End wall options

Configure your shelter for the way you work.

Choose the right balance of access, weather protection, security and airflow for your site.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

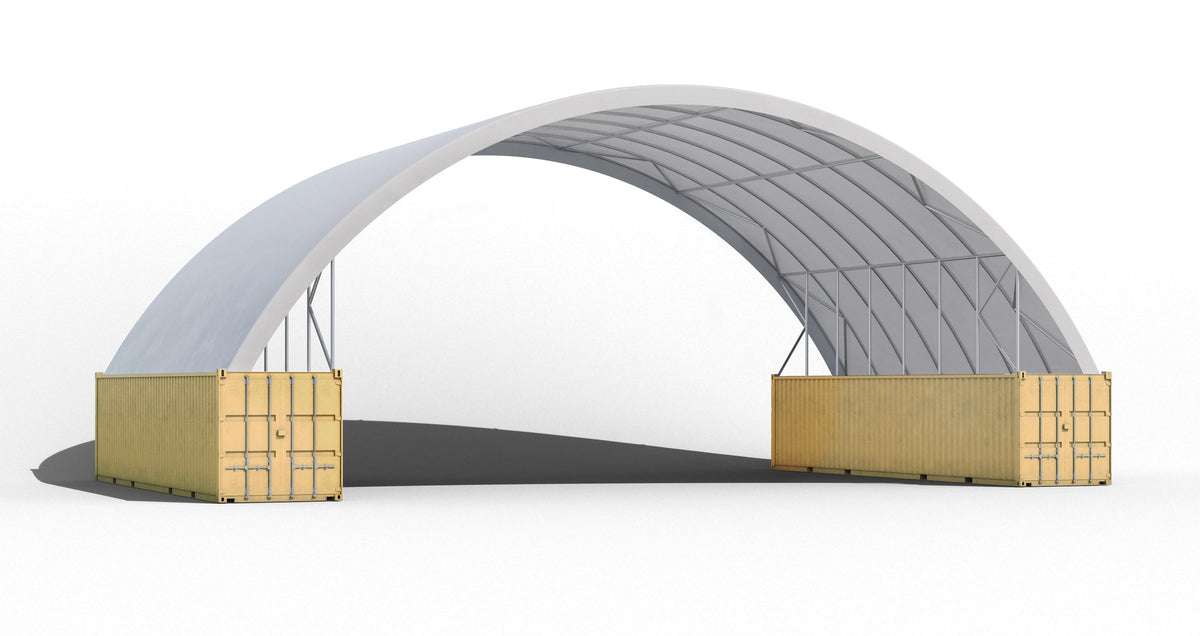

Open End

Maximum access and airflow for machinery, vehicles and high-traffic operations.

  • Lowest-cost configuration
  • Maximum access
  • Fastest installation

Full End Wall

Maximum weather protection for bulk materials, storage and demanding industrial sites.

  • Full-height protection
  • Better environmental control
  • Custom access openings available
Popular

Half End Wall

Extra protection from prevailing weather while maintaining generous access.

  • Reduces wind and rain entry
  • Maintains good ventilation
  • Ideal for machinery storage

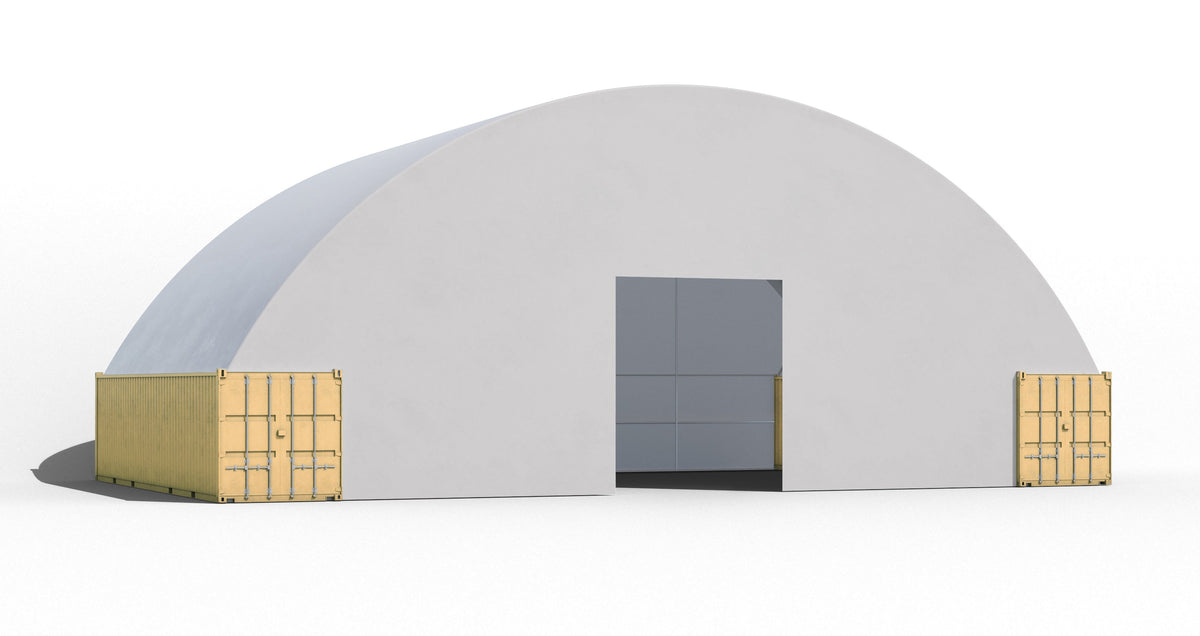

Mechanical Door

Add secure, controlled access without sacrificing the shelter's modular design.

  • Lockable access
  • Improved security
  • Personnel or vehicle options

Need something different?

Built around your operation.

We've spent more than 12 years solving unusual storage problems. Roller doors, personnel doors, louvres, custom flashings, extra-wide openings and bespoke fabrication are all possible.

Talk to Our Team

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use

Built for business. Proven in the real world.

Project Spotlight

Purpose-built cover for sites with real constraints.

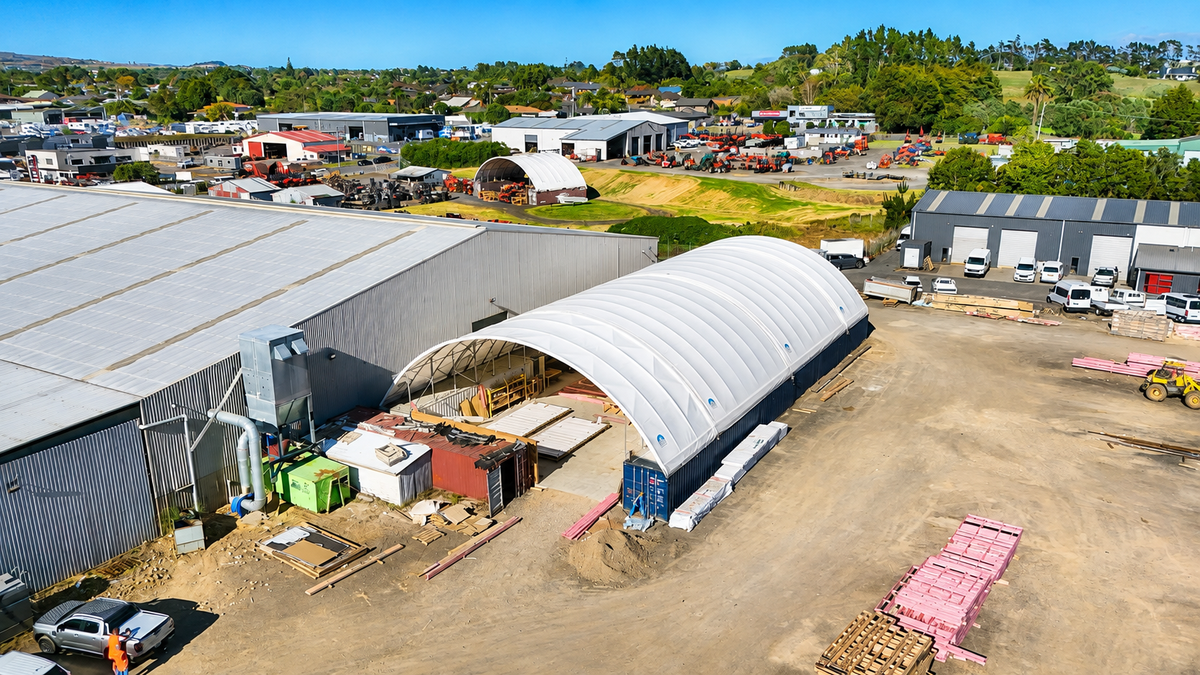

36 metre Lil' Bertha container shelter for VIP Frame and Truss
Built to Perform. Proven in the Real World. VIP Frame & Truss Frame and Truss Manufacturing Site

Rapid covered space to keep an expansion moving.

36m Overall length
19m Covered width
684m² Protected area
Timber Manufacturing industry

The project

Height, light and a dry floor.

VIP Frame & Truss needed covered space quickly to support an expansion at their site. Three 40ft bays were joined for a 36-metre Lil' Bertha — not the first shelter we have built for this team.

The height suits working machinery rather than just storing it, and the cover lets enough light through that the space works without internal lighting, but without the heat build-up you get under a darker roof. Because the Bertha range mounts to the outside of the containers, rainwater runs clear of the working area, keeping the floor as dry as it gets.

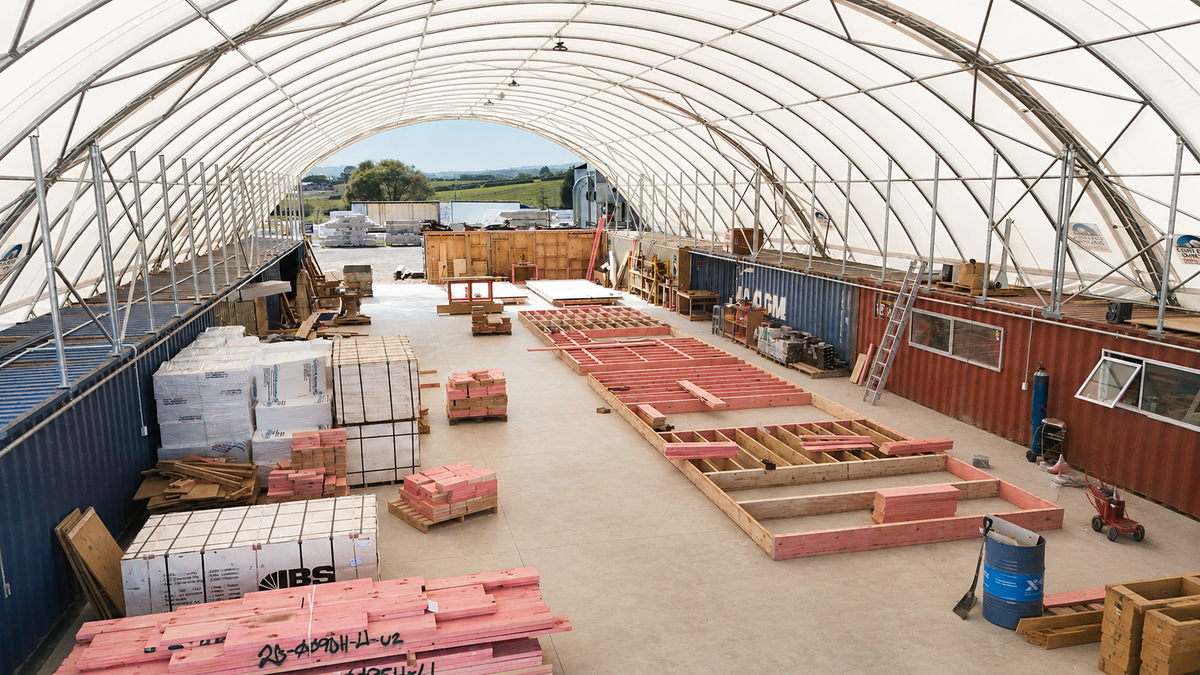

Lil' Bertha shelter covering timber truss manufacturing
View image

Working height, not just storage height

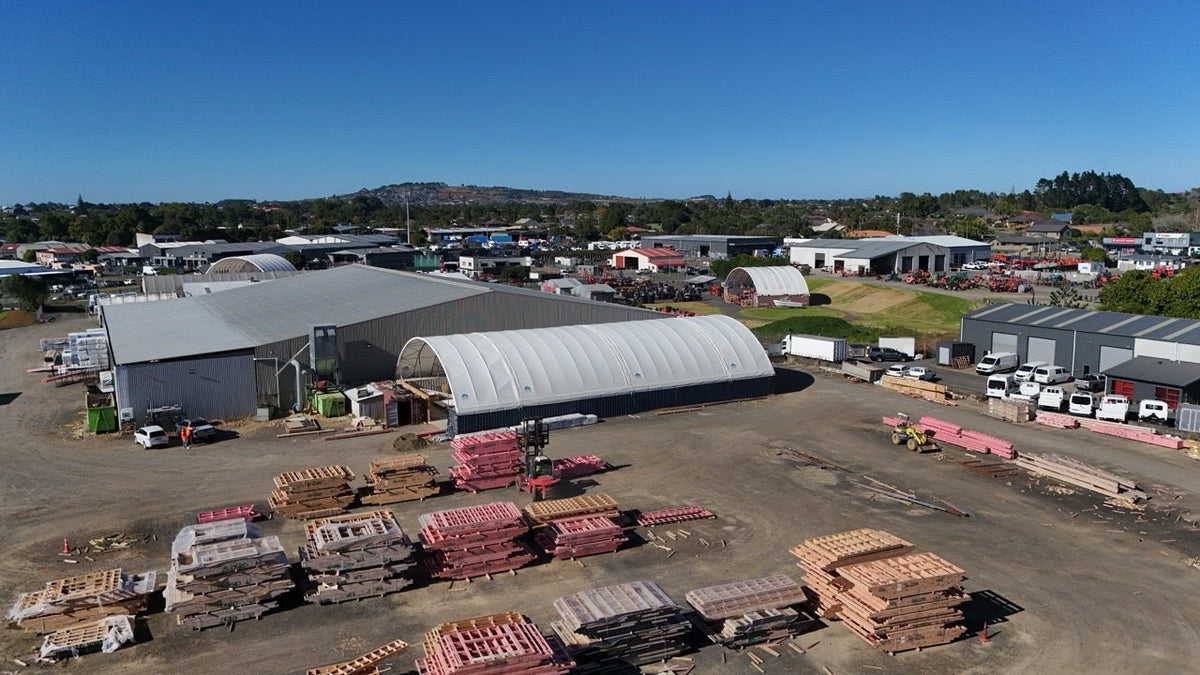

Aerial view of a 36 metre Lil' Bertha shelter
View image

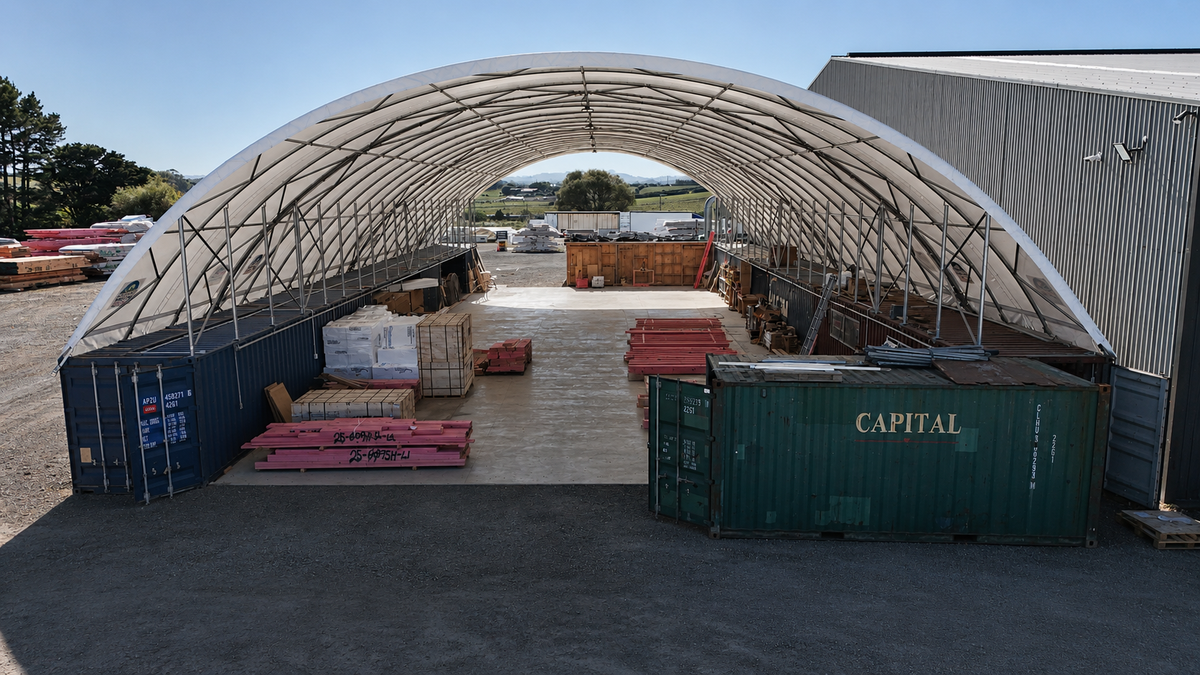

Three 40ft bays joined end to end
3,500+ Shelters supplied

Proven across Australia, New Zealand and the Pacific.

From farm storage to major commercial installations, every project benefits from more than 12 years of continuous product refinement and real-world experience.
