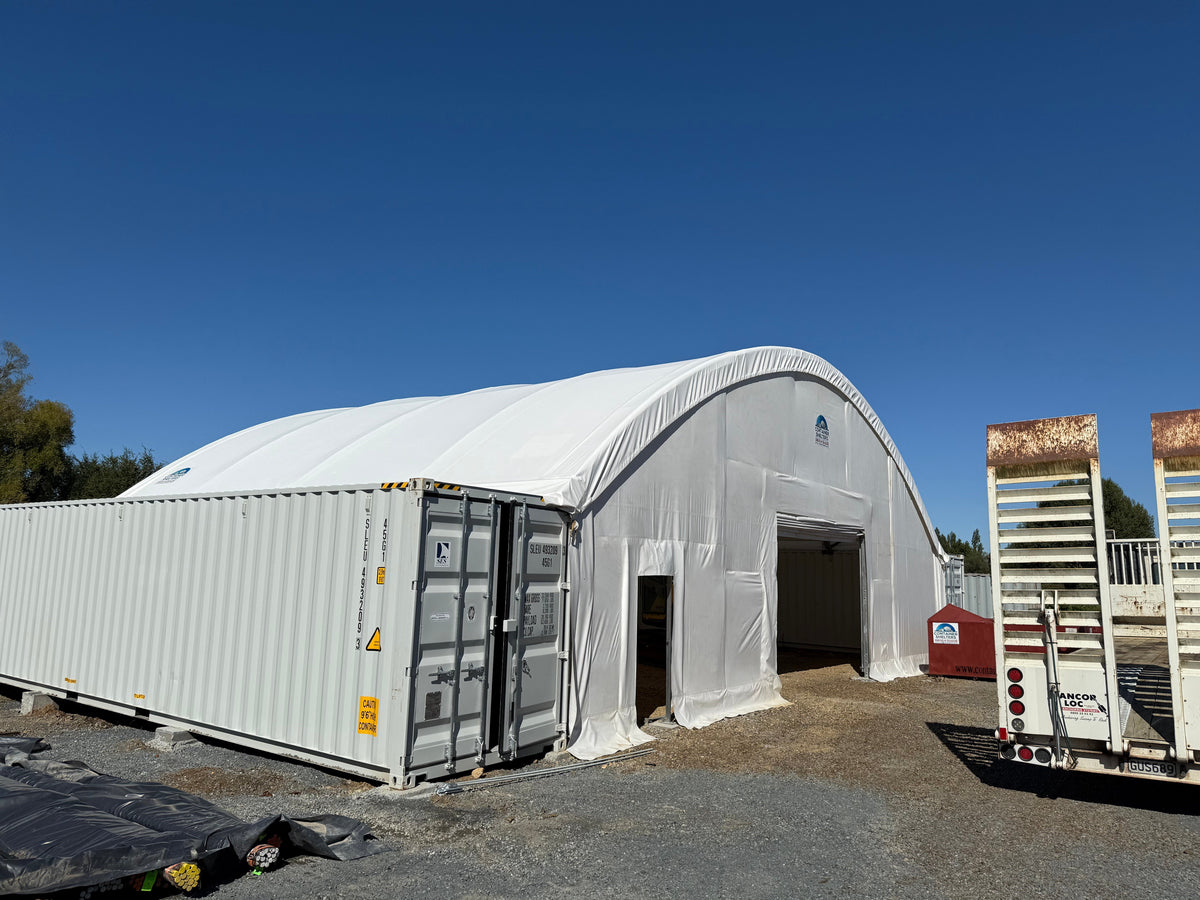

16m Compact container shelter

Single portal container shelter

16m Compact

A wide 16-metre span, kept deliberately low.

Get My Quote
Talk to our team 1800 683 838
16m Clear span
AS/NZS 1170 engineered
10 Year Warranty
10 Year Warranty

Available lengths

Covered area 97 m²
Select a length to see the covered area. Made to order.

Technical overview

16m Compact specifications

A 16-metre single-portal span that keeps overall height down, presented clearly for early planning and quoting. Every 16m Compact is made to order and ships with our Sheltex cover as standard.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.
16m x 40ft Compact container shelter render with dimensions

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 16m between containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom
Overall height 6.09m on standard containers; 6.39m on Hi-Cube
Rise 3.5m above container height to apex
Frame Single portal frame in hot-dip galvanised structural steel
Cover Sheltex 650gsm PVC membrane with sealed outer finish, standard on this model
Mounting Containers, block walls, timber or steel posts
Wind regions Engineered to AS/NZS 1170.2. Wind rating is confirmed for your site and wind region through site-specific structural certification
Design basis Engineered to AS/NZS 1170, with site-specific structural certification by an Australian engineer available
Availability Made to order. Lead time confirmed with your quote
Warranty 10-year warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Standard on the 16m Compact

Covered in Sheltex.

Every 16m Compact is made to order, so it ships with Sheltex, our own 650gsm PVC cover developed to our own specification for harsh UV and exposed sites. Heavier than the industry-standard 610gsm, with a sealed outer finish that stays cleaner and brighter for longer.

  • ✓650gsm heavy-duty PVC
  • ✓Sealed outer finish
  • ✓Brighter and cooler underneath
  • ✓10 Year Warranty
Learn About Sheltex →

Mounting options

One width, mounted your way.

Mount inside to inside for the quoted clear span, or outside to outside to bring the containers under cover as well. Either option works on single or double-stacked containers.

The mounting geometry is the same across our range. Diagrams show a smaller span for illustration.
Inside to inside mounted container shelter, single stack Standard

Inside to Inside - Single Stack

The shelter mounts to the inner edges of the containers. The quoted span is the clear space between them.

  • Our standard configuration
  • Span measured between containers
  • Lowest overall height
Outside to outside mounted container shelter, single stack

Outside to Outside - Single Stack

The shelter mounts to the outer edges of the containers, so the containers sit under cover as well as the space between them.

  • Wider overall covered width
  • Containers protected under the roof
  • Lowest overall height
Inside to inside mounted container shelter, double stacked

Inside to Inside - Double Stack

Mounted inside to inside on containers stacked two high, for extra height clearance under the shelter.

  • Extra height clearance
  • Span measured between containers
  • Two containers high
Outside to outside mounted container shelter, double stacked

Outside to Outside - Double Stack

Mounted outside to outside on double-stacked containers, combining the widest covered area with maximum height clearance.

  • Widest covered area
  • Extra height clearance
  • Two containers high

Across our range

Proven in the real world.

The 16m Compact is built with the same hot-dip galvanised steel, KeeperTrack end walls and engineering as every shelter we make. These are installs from across our range.

Rapid install

Our shelters go up in days, with no piles or concrete footings required.

Wide spans in service

A Big Bertha, one of our wide-span shelters.

Engineered to AS/NZS 1170

Site-specific engineering available for your wind region and site conditions.

Flexible configuration

Available in multiple lengths and mounting options.

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use
