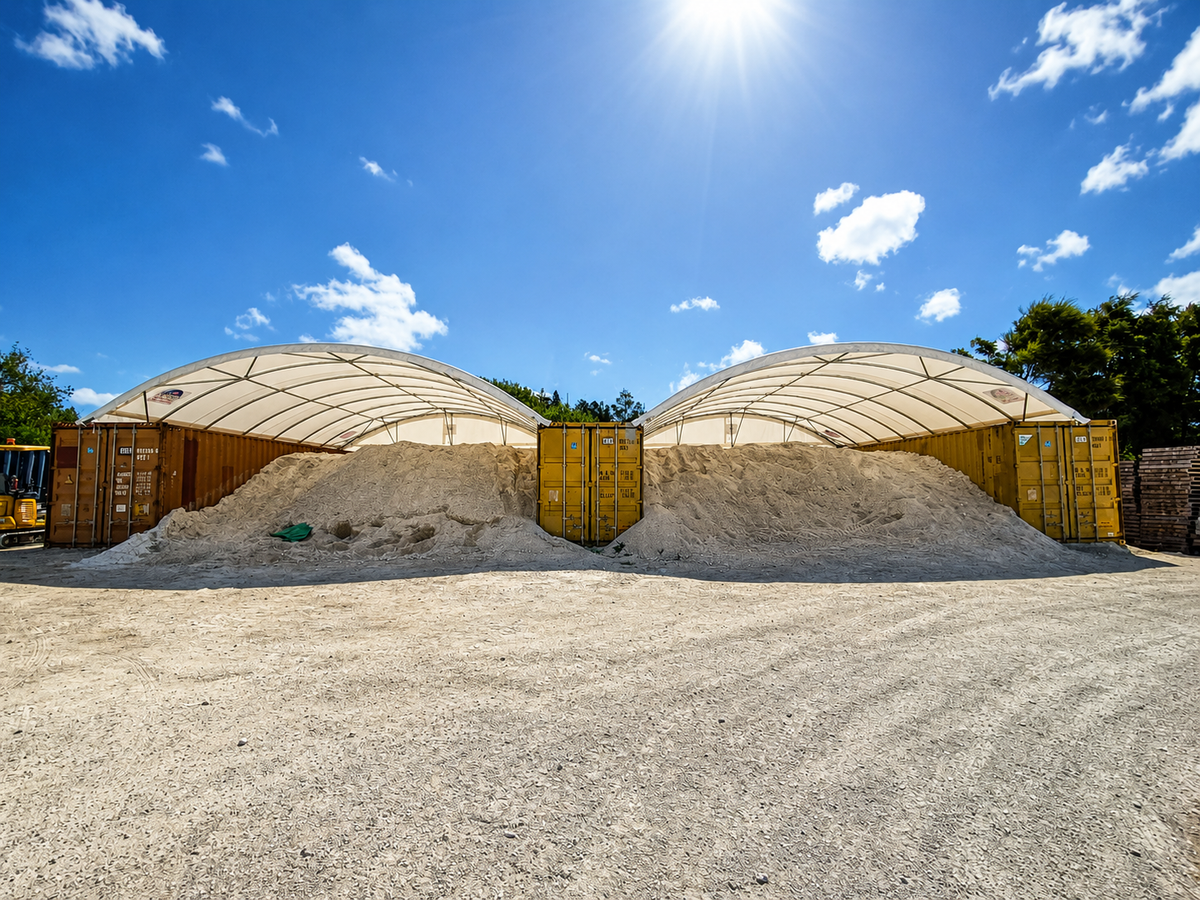

10m Super Heavy Duty container shelter

Super heavy-duty container shelter

10m Super Heavy Duty

Wide-span coverage with the lowest profile in the range.

Get My Quote
Talk to our team 1800 683 838
10m Clear span
AS/NZS 1170 engineered
10 Year Warranty
3,500+ Shelters supplied

Available lengths

Covered area 61 m²
Select a length to see the covered area.

Technical overview

10m Super Heavy Duty specifications

A 10-metre span with the lowest rise in the range, presented clearly for early planning and quoting.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

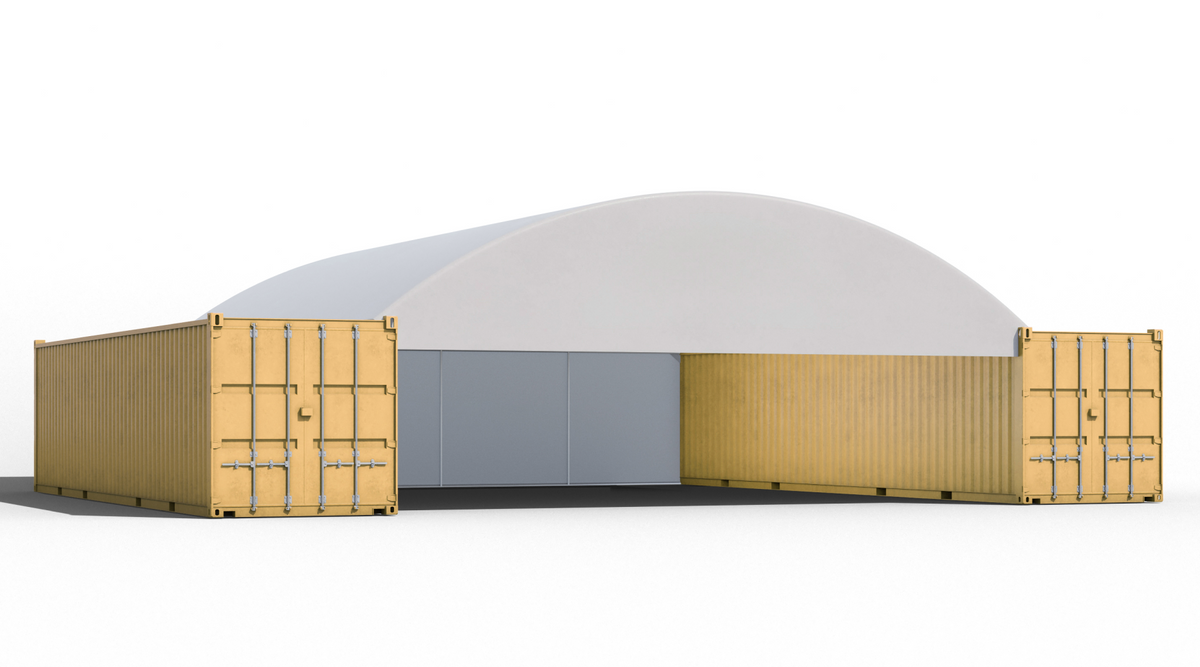

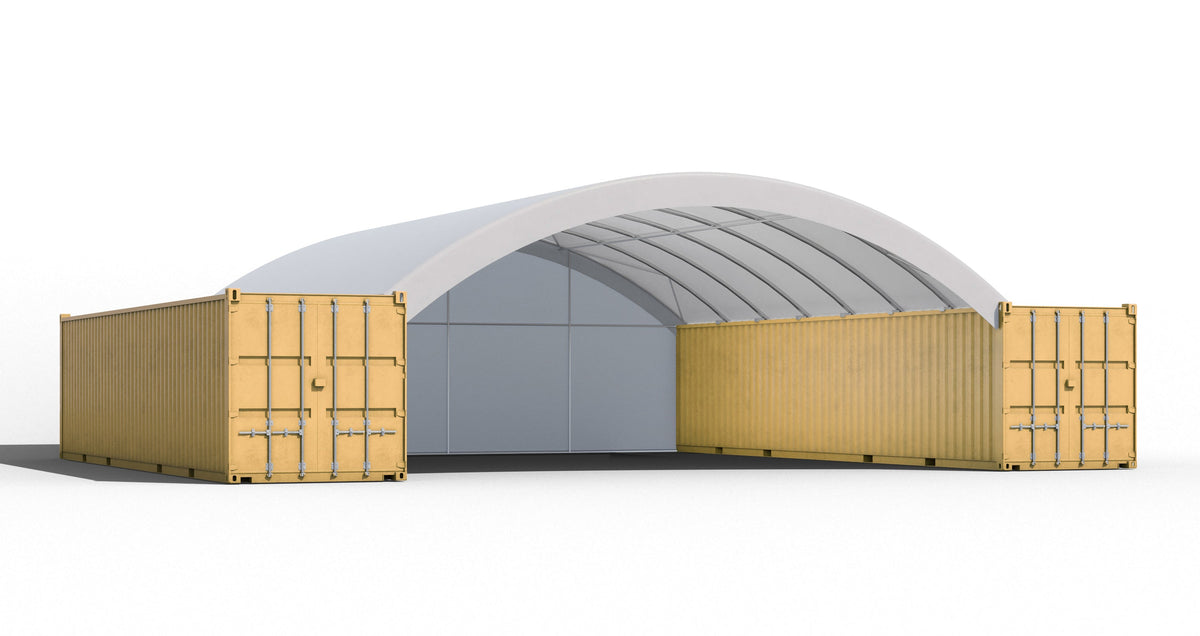

10m Super Heavy Duty container shelter render

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 10m (10,120mm) between containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom
Overall height 4.36m on standard containers; 4.66m on Hi-Cube
Rise 1770mm above container height to apex
Frame Hot-dip galvanised structural steel
Cover Sheltex 650gsm PVC membrane with sealed outer finish
Mounting Containers, block walls, timber or steel posts
Wind regions Engineered to AS/NZS 1170.2. Wind rating is confirmed for your site and wind region through site-specific structural certification
Engineering Engineered to AS/NZS 1170, with site-specific structural certification by an Australian engineer available
Warranty 10-year warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Mounting options

One width, mounted your way.

Mount inside to inside for the quoted clear span, or outside to outside to bring the containers under cover as well. Either option works on single or double-stacked containers.

Not every site suits containers. We also mount on block walls, timber or steel posts — see the New Zealand Police project below.

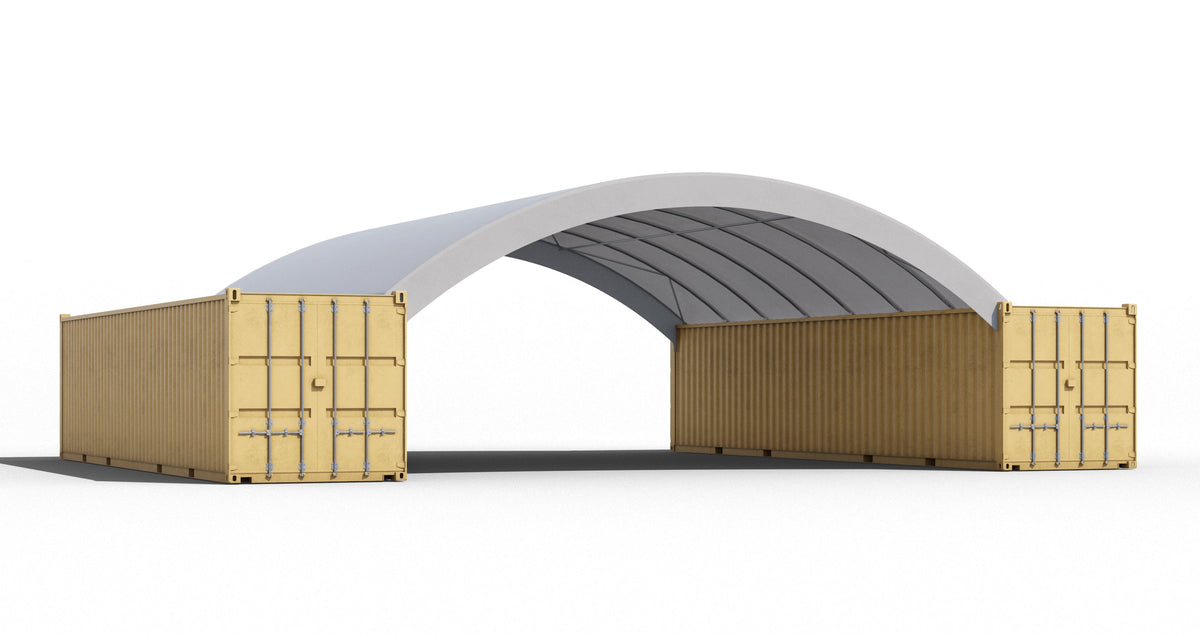

Inside to inside mounted 10m container shelter, single stack Standard

Inside to Inside - Single Stack

The shelter mounts to the inner edges of the containers. The quoted span is the clear space between them.

  • Our standard configuration
  • Span measured between containers
  • Lowest overall height

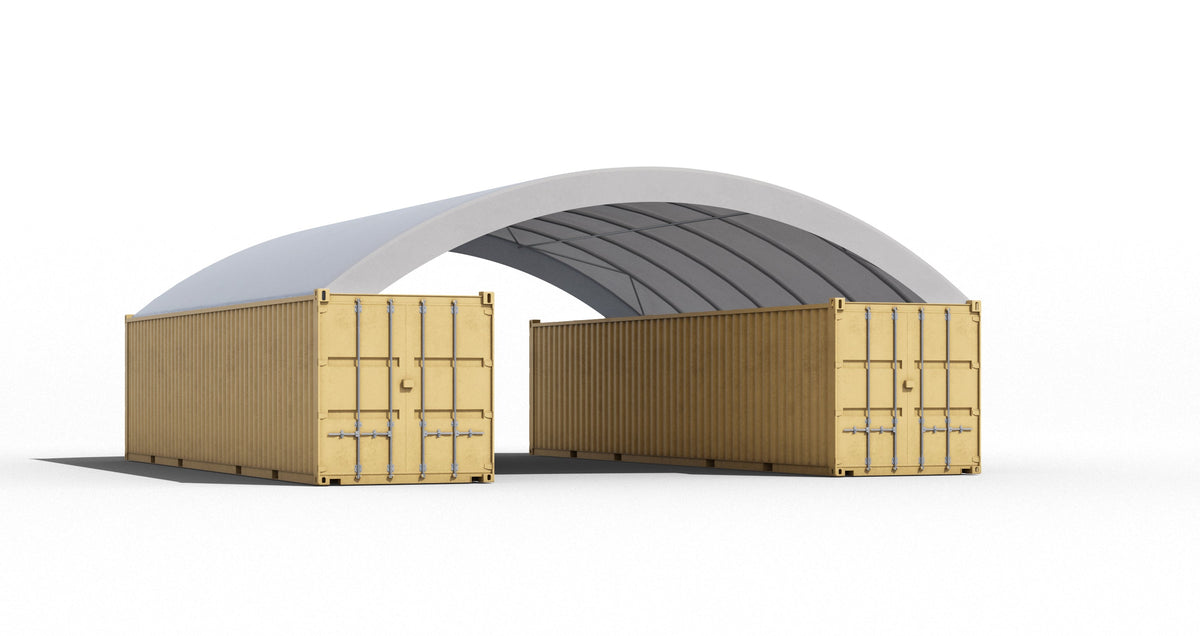

Outside to outside mounted 10m container shelter, single stack

Outside to Outside - Single Stack

The shelter mounts to the outer edges of the containers, so the containers sit under cover as well as the space between them.

  • Wider overall covered width
  • Containers protected under the roof
  • Lowest overall height

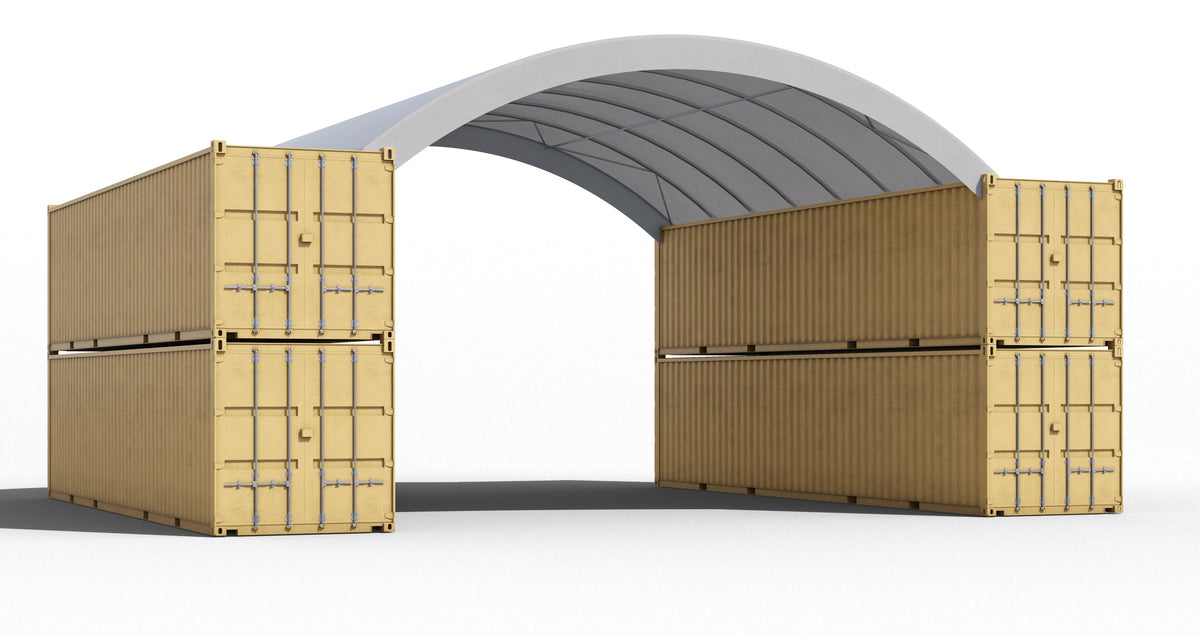

Inside to inside mounted 10m container shelter, double stacked

Inside to Inside - Double Stack

Mounted inside to inside on containers stacked two high, for extra height clearance under the shelter.

  • Extra height clearance
  • Span measured between containers
  • Two containers high

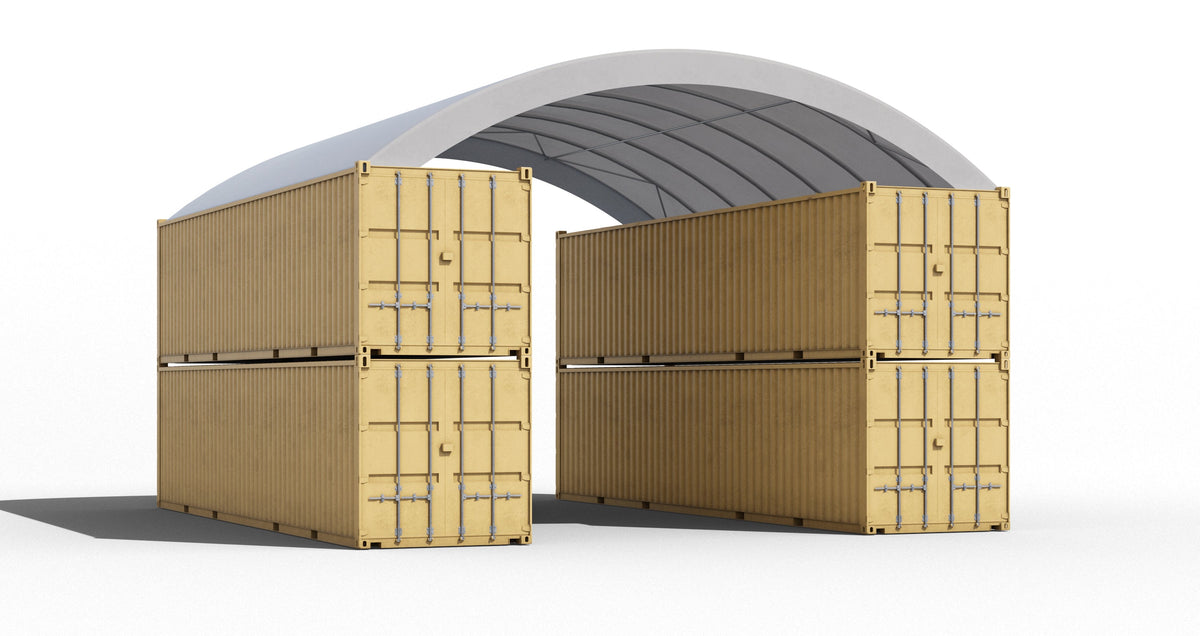

Outside to outside mounted 10m container shelter, double stacked

Outside to Outside - Double Stack

Mounted outside to outside on double-stacked containers, combining the widest covered area with maximum height clearance.

  • Containers protected
  • Extra height clearance
  • Two containers high

Built in the real world

Wide span. Low profile.

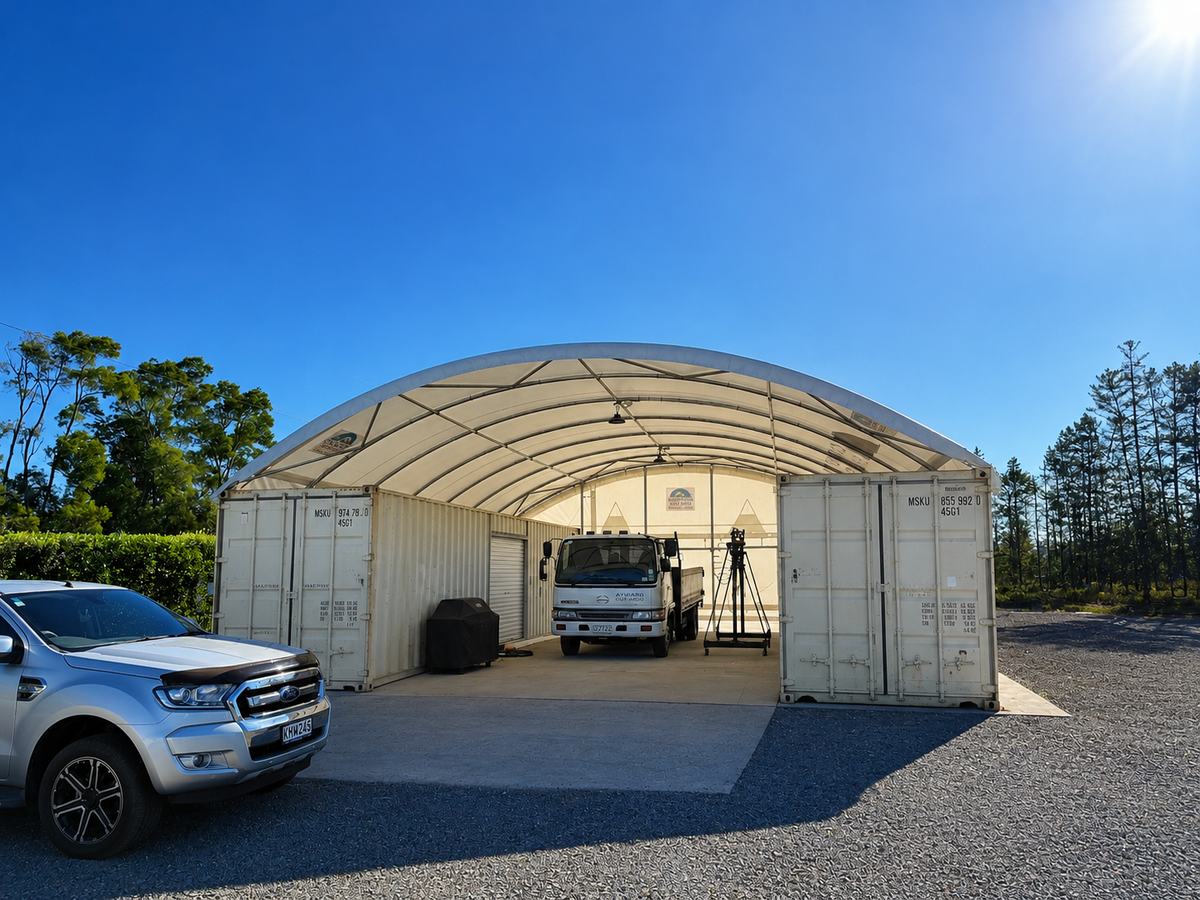

From equipment and vehicle storage to workshops and site protection, the 10m span delivers dependable covered space without a conventional building footprint.

Rapid install

Installed in days, with no piles or concrete footings required.

KeeperTrack Endwall System

Tighter is always better for longevity.

Engineered to AS/NZS 1170

Site-specific engineering available for your wind region and site conditions.

Flexible configuration

Available in multiple lengths and mounting options.

End wall options

Configure your shelter for the way you work.

Choose the right balance of access, weather protection, security and airflow for your site.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

Open End

Maximum access and airflow for machinery, vehicles and high-traffic operations.

  • Lowest-cost configuration
  • Maximum access
  • Fastest installation

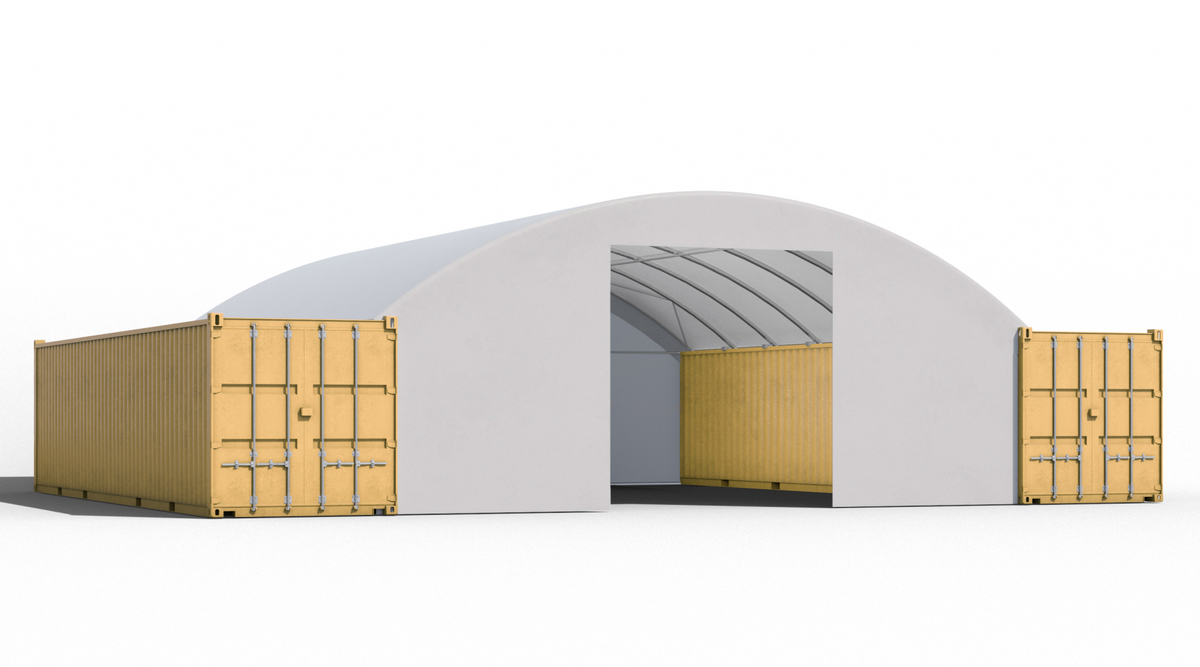

Full End Wall

Maximum weather protection for bulk materials, storage and demanding industrial sites.

  • Full-height protection
  • Better environmental control
  • Custom access openings available
Popular

Half End Wall

Extra protection from prevailing weather while maintaining generous access.

  • Reduces wind and rain entry
  • Maintains good ventilation
  • Ideal for machinery storage

Mechanical Door

Add secure, controlled access without sacrificing the shelter's modular design.

  • Lockable access
  • Improved security
  • Personnel or vehicle options

Need something different?

Built around your operation.

We've spent more than 12 years solving unusual storage problems. Roller doors, personnel doors, louvres, custom flashings, extra-wide openings and bespoke fabrication are all possible.

Talk to Our Team

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use

Built for business. Proven in the real world.

Project Spotlight

Purpose-built cover for sites with real constraints.

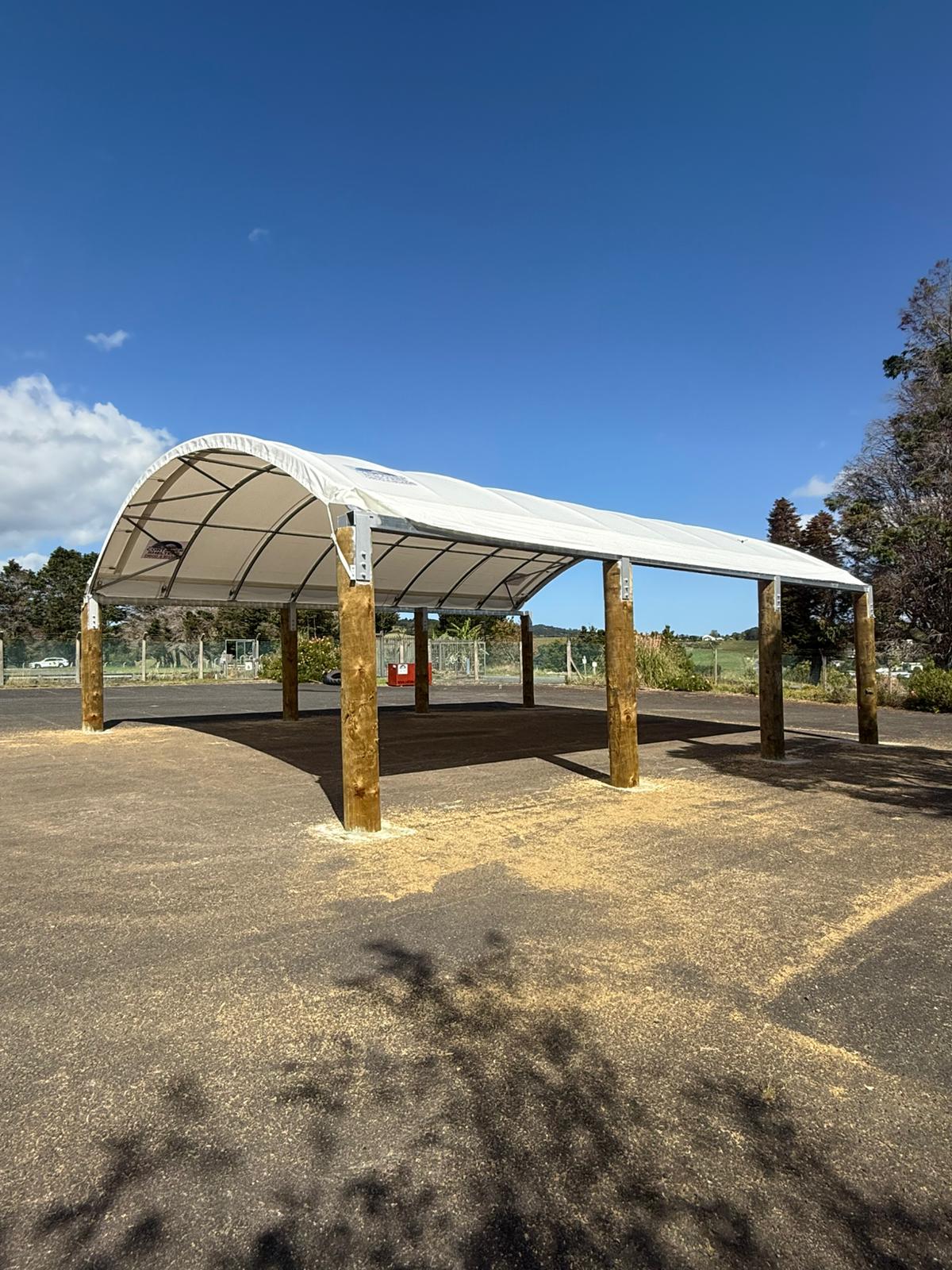

10m container shelter on elevated poles at the New Zealand Police training facility
Built to Perform. Proven in the Real World. New Zealand Police Whangārei

Purpose-built training cover, fully engineered and signed off by Council.

10m Clear span
12.19m Overall length
122m² Protected area
Police / Government Sector

The project

All-weather training, whatever the season throws at it.

New Zealand Police needed covered space at their training facility where officers could run vehicle stop and search exercises year-round, without weather cutting a session short.

The answer was a 10m x 40ft shelter mounted on elevated poles rather than containers, giving full vehicle clearance underneath. Fully engineered, issued with site-specific structural certification and signed off by Council.

Built for business. Proven in the real world.

Project Spotlight

Rapid Deployment of Serious Shelter

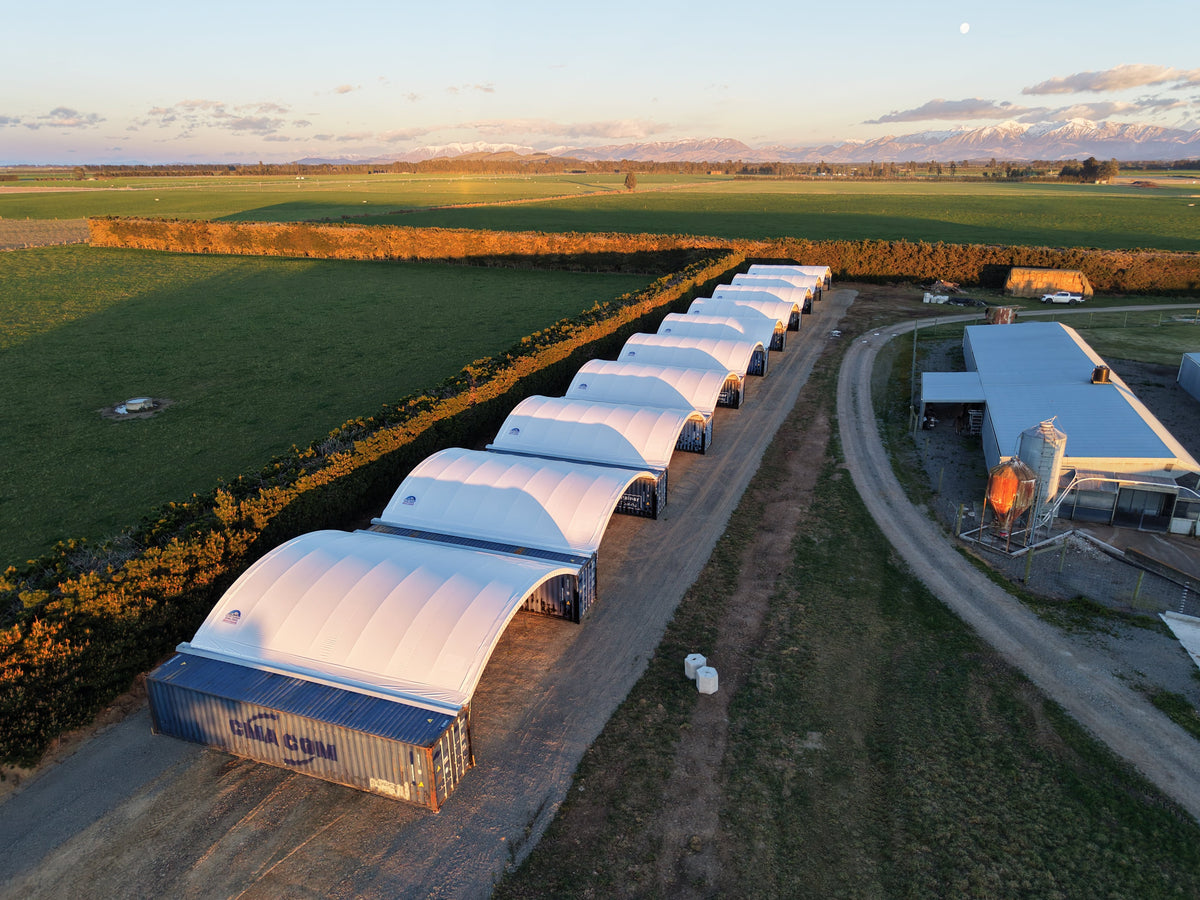

Ten 10m x 40ft container shelters on shared containers, used for livestock housing
Built to Perform. Proven in the Real World. Livestock Housing Livestock Operation

Ten shelters on shared containers, installed in under two weeks.

10x Shelters
10m Clear span
1,233m² Protected area
Livestock Sector

The project

Ten Shelters. Under two weeks

A livestock operation needed housing for newborn stock, and needed it quickly. We supplied and installed ten 10m x 40ft shelters side by side on shared containers, so each container between them carries a shelter on both sides. Fewer containers, less ground taken up, and one connected run of covered space.

The white cover lets daylight through, so the space is bright without lighting, and air keeps moving while the animals stay warm and out of the weather. Every shelter has full rainwater control, with guttering and downpipes taking water away from the site. All ten were installed in under two weeks.

3,500+ Shelters supplied

Proven across Australia, New Zealand and the Pacific.

From farm storage to major commercial installations, every project benefits from more than 12 years of continuous product refinement and real-world experience.
